商品の詳細:
|
| 製品名: | 回転式テーブルの反スリップのマット | 材料: | PU |
|---|---|---|---|
| 厚さ: | 30mm | サイズ: | ZP275 |
| 色: | 黄色 | 応用: | 回転式テーブル |

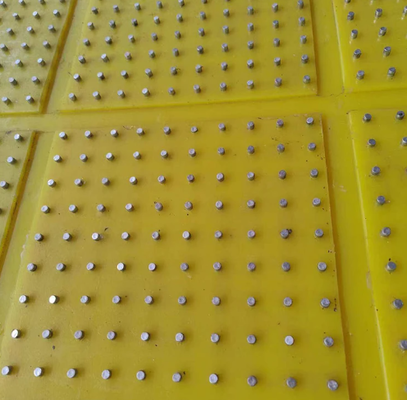

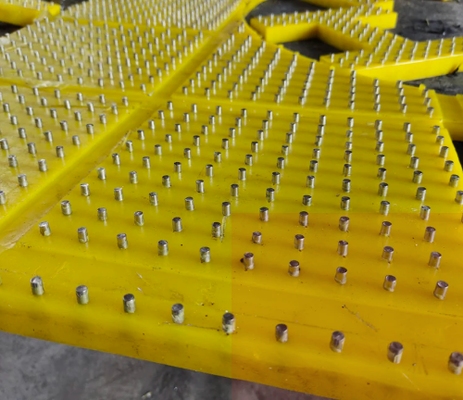

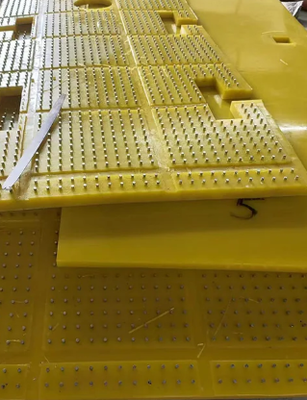

Polyurethane 30mm Thickness Rotary Table Anti Slip Mat Resistance To Corrosion
Product Description
Drilling platform anti slip mat is a kind of rubber pad for drilling rig turntable and platform used in oil field,
mining and engineering construction. It is composed of steel nails and rubber layer, and is divided into ordinary
rubber and polyurethane rubber. This new type of anti slip mat has a more significant anti-slip protection effect.
Our Advantages:
1.Made of carefully selected raw materials and processed with elaborate workmanship, our products feature stable performance, excellent resistance to acid, alkali, abrasion and corrosion, as well as long service life.
2.Strict quality inspection is implemented throughout production to free customers from worries.
3.We offer complete specifications and customized services upon request.
Specific parameter:
Standard ZP-175, ZP-275, ZP-375, ZP-205
Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip mat appearance is beautiful with the color of yellow safety warning mark.
Technical Parameter
| Product Name | 1042 PU | |
|
Operation process |
NCO% Content | 4.2±0.2 |
| State of matter(20℃) | White waxy object | |
| 100g prepolymer MOCA dosage(g) | 12 | |
| Viscosity(85℃/MPa • S) | 1100 | |
|
Mixing temperature (℃)prepolymer/ MOCA |
80/ 120 | |
| Gel time(min) | 8- 12 | |
| Post-curing time(h/ 110℃) | 16-24 | |
|
Physical index |
Hardness (SHAO A) | 90±2 |
| 100% stress at definite elongation(MPa) | 8 | |
| 300% stress at definite elongation(MPa) | 22 | |
| Tensile strength(MPa) | 45 | |
| Elongation at break(%) | 520 | |
| Right-angled tearing strength(KN/m) | 95 | |
| Pants type tear strength(KN/m) | 32 | |
| Springback(%) | 28 | |
| Akron abrasion(cm³) | 0.02 |
